Product Description

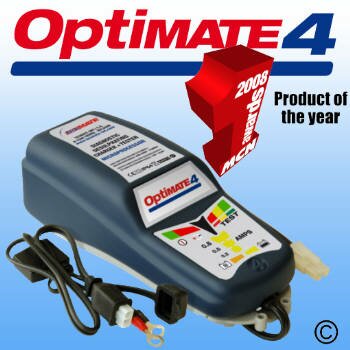

Like all OptiMate models before it, the microprocessor controlled OptiMate 4 can save neglected batteries, but the OptiMate 4 is even more effective, with a new dual-stage RECOVERY TURBO RECOVERY desulfating action. For neglected deep-discharged batteries the RECOVERY mode engages automatically, while the TURBO RECOVERY mode engages for more severely neglected batteries

Now OptiMate 4 also has the following new features

• Maximum output current increased to 0,8A without increasing energy consumption
• 19 possible LED indications displayed on 10 LEDs on the stunning new control panel
• 5 possible results of the cyclic hourly tests for power drain /retention are displayed on a combination of green, yellow & red TEST LEDs
• IP64 weatherproof sealed enclosure with built-in mounting option (replaceable if damaged for example by over-tightening a fixing screw)

But, the most important attribute of the OptiMate 4, as with all OptiMates, is the safe, optimal maintenance of your battery during long term storage, achieved by its gentle maintenance cycle which automatically allows the battery to rest for 30 minutes of each hour of the maintenance cycle while it remains connected.

The automatic multi stage program engages as soon as the OptiMate is connected to a 12V battery that has at least 2V :-

• The OptiMate 4 immediately checks if the battery has enough voltage to start the program, and whether the battery is deep-discharged ("sulfated") or not.
• For neglected batteries, the OptiMate 4 starts the recovery mode, initially limiting the applied voltage at 16V, and if necessary for sulfated batteries, engaging TURBO recovery at a voltage of up to 22V** at low current for up to 2 hours, to recover the battery to a condition in which it can accept a normal charge.
• As soon as the circuit detects that this point has been reached (immediately for most batteries), the “bulk charge” mode engages and delivers current at a constant rate of 0,8A to charge the battery.
• When the battery-sensing circuit observes that charge progress is sufficient, the unique ‘verificationÂ’ stage engages. The voltage is limited at a lower level, & if sensed necessary, a voltage pulsing action provides further desulfating & tops off the charge. When this has been verified, or if after 48 hours from connection the battery has been unable to accept & retain adequate charge, the next stage engages.
• The OptiMate then stops current to the battery for 30 minutes while it monitors the unsupported battery voltage to check whether the battery can retain sufficient charge to crank an engine, before the long term maintenance and test cycle begins.
• During the next 30 minutes the OptiMate offers the battery a supporting & maintaining charge, but only to the extent necessary to counter any losses or connected loads such as an electronic alarm or immobilizer. Overcharging and/or overheating of the battery is ruled out by this 50% duty cycle as the battery is interactively maintained for 30 minutes and then rests during the power drain tests of each alternative 30 minutes.
•  So the battery is always 100% good to go, but never overcharged.
